Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: YZ10
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd13500/unit-usd29000/unit
Packaging Details: by container
Delivery Time: 20 working days
Payment Terms: D/A, D/P, T/T, L/C
Supply Ability: 1000 units per year
Operating Weight （kg）: |
10000 |
Vibratory Drum Diameter （mm）: |
1430 |
Compaction Width （mm）: |
1980 |
Static Line Pressure （N/cm）: |
240 |
Min. Ground Clearance （mm）: |
380 |
Wheel Base （mm）: |
2900 |
Min. Turning Radius （mm）: |
5800 |
Gradeability: |
30% |
Vibratory Amplitude（mm: |
1.6/0.8 |
Vibratory Frequency （Hz）: |
30 |
Centrifugal Force （kN）: |
225/105 |
Tyre Model: |
17.5-25-12PR |
Engine Model: |
WP4G110E221 |
Rated Power: |
82KW |
Operating Weight （kg）: |
10000 |
Vibratory Drum Diameter （mm）: |
1430 |
Compaction Width （mm）: |
1980 |
Static Line Pressure （N/cm）: |
240 |
Min. Ground Clearance （mm）: |
380 |
Wheel Base （mm）: |
2900 |
Min. Turning Radius （mm）: |
5800 |
Gradeability: |
30% |
Vibratory Amplitude（mm: |
1.6/0.8 |
Vibratory Frequency （Hz）: |
30 |
Centrifugal Force （kN）: |
225/105 |
Tyre Model: |
17.5-25-12PR |
Engine Model: |
WP4G110E221 |
Rated Power: |
82KW |

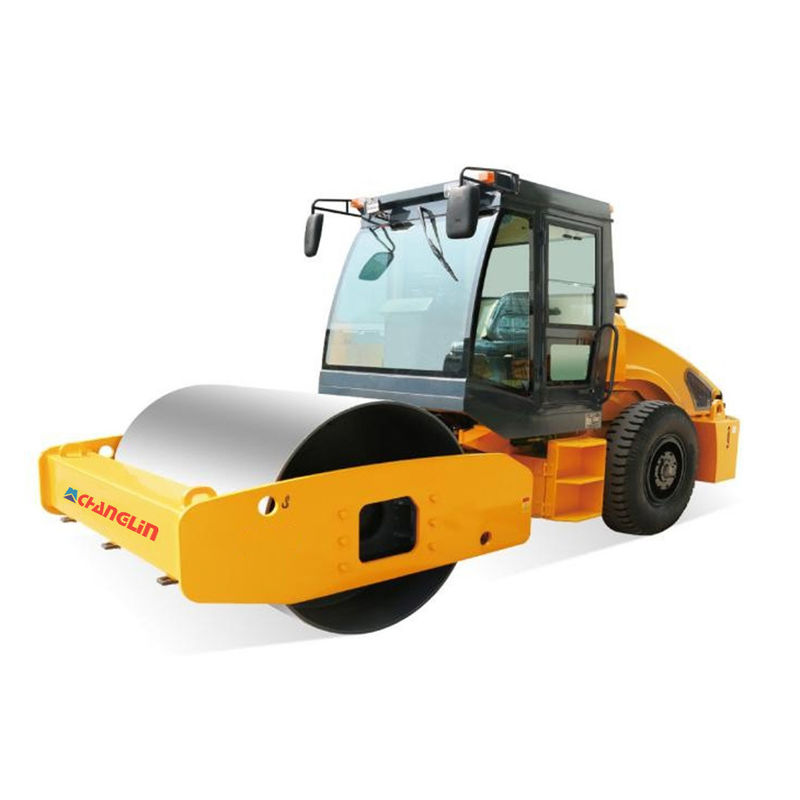

Changlin YZ10 Vibrating Roller
Suitable for compaction of large-scale engineering foundations such as high-grade roads, dams, railways, airports, etc. It can crush non-stick materials such as sand, gravel, gravel, rock fill and semi-stick materials.
Main Features:
·Equipped with 4-cylinder supercharged Weichai power, with large power reserve, high efficiency, energy saving and environmental protection, and the emission reaches the national standard II;
·Mechanical drive, forward3 reverse2 speeds
·Hydraulic vibration, electric control, vibration, large centrifugal force, good compaction performance;
·Hydraulic steering, articulated frame, light and flexible steering, light and flexible operation
·Equipped with a special gearbox for the roller with a synchronizer, which has large transmission torque and light shifting;
·Gas-assisted hydraulic caliper disc driving brake, mechanical parking drum brake, safe and reliable
·The rear hood can be turned up at a large angle for easy maintenance
·Hydraulic components use well-known brands and reliable performance
·Optional different pattern tires; optional other brands of diesel engines; standard cab, optional air conditioning.
