Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: YZ12HD
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd35000/unit-usd59000/unit
Packaging Details: by container
Delivery Time: 20 working days
Payment Terms: D/A, D/P, T/T, L/C
Supply Ability: 1000 units per year
Operating Weight （kg）: |
12000 |
Vibratory Drum Diameter （mm）: |
1450 |
Compaction Width （mm）: |
2100 |
Static Line Pressure （N/cm）: |
317 |
Min. Ground Clearance （mm）: |
420 |
Wheel Base （mm）: |
3000 |
Min. Turning Radius （mm）: |
6200 |
Gradeability: |
45% |
Vibratory Amplitude（mm: |
1.9/0.9 |
Vibratory Frequency （Hz）: |
30/35 |
Centrifugal Force （kN）: |
280/180 |
Forward (km/h): |
0-5.5/0-10 |
Reverse (km/h): |
0-5.5/0-10 |
Tire Model: |
20.5-25-16PR |
Engine Model: |
WP4G110E221 |
Rated Power: |
82kW@2200rpm |
Dimension (mm): |
5850×2250×3080 |
Operating Weight （kg）: |
12000 |
Vibratory Drum Diameter （mm）: |
1450 |
Compaction Width （mm）: |
2100 |
Static Line Pressure （N/cm）: |
317 |
Min. Ground Clearance （mm）: |
420 |
Wheel Base （mm）: |
3000 |
Min. Turning Radius （mm）: |
6200 |
Gradeability: |
45% |
Vibratory Amplitude（mm: |
1.9/0.9 |
Vibratory Frequency （Hz）: |
30/35 |
Centrifugal Force （kN）: |
280/180 |
Forward (km/h): |
0-5.5/0-10 |
Reverse (km/h): |
0-5.5/0-10 |
Tire Model: |
20.5-25-16PR |
Engine Model: |
WP4G110E221 |
Rated Power: |
82kW@2200rpm |
Dimension (mm): |
5850×2250×3080 |

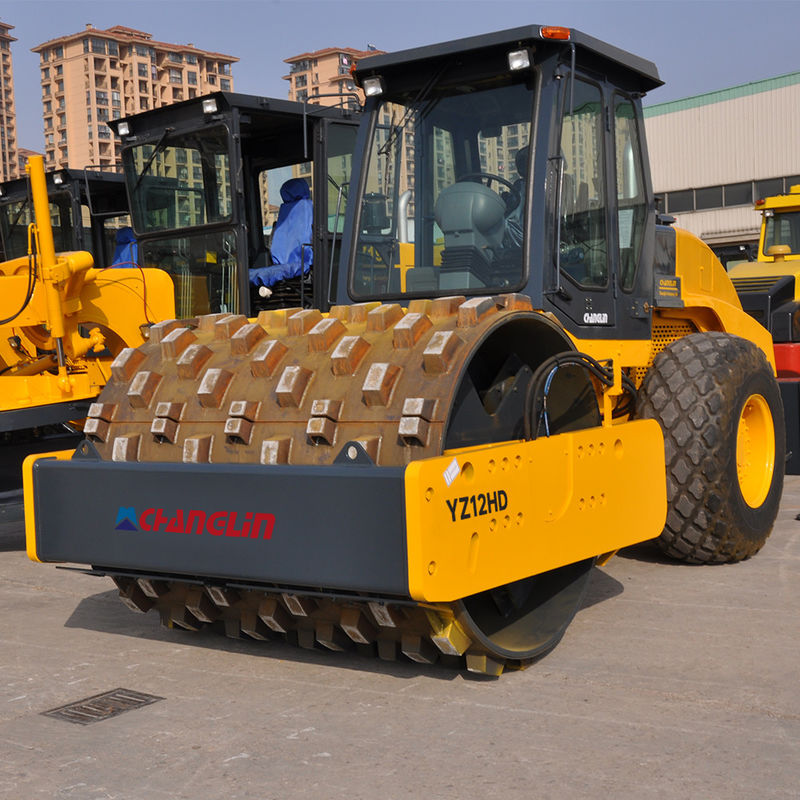

Changlin YZ12hd Vibrating Roller
YZ12HD road roller is intended for compaction work on large-scale engineering foundations, such as those for building roads, dams, railroads, and airports. This construction machine is suited for compacting non-stick and semi-stick materials like sand, gravel, rock fill, etc.
Main Features:
· Hydraulic front and rear wheel drive, stepless speed change, powerful climbing ability;
· Hydraulic vibration and electronically controlled delay start-up, delivering large centrifugal force and good compaction performance;
· Hydraulic steering with articulated frame provides flexible steering and adjustable amplitude;
· The road roller drive axle provides superior drive performance;
· Hydraulic service brake and electric control disc parking brake, with brake release device, enabling the road roller to be towed for a short distance with safe performance;
· The rear hood can be raised at a large angle to make maintenance on the road roller easier;
· The drive system and vibration system are equipped with hydraulic components from world's renowned brands for high stability and durability;
· Optional configurations include different pattern tires, diesel engines of other brands, and pad foot;
