Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: YZC08HD
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD3500-9500
Packaging Details: Nude
Delivery Time: 7-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 90 set/momth
Model: |
YZC08HD |
Power Type: |
Diesel |
Engine Model: |
CF186F |
Dimension(L×W×H): |
2400×880×1100（mm） |
Operating Weight(Standard): |
800KG |
Vibratory Drum Diameter: |
400mm |
Compaction Width: |
600mm |
Wheel Base: |
470mm |
Min. Turning Radius: |
2700mm |
Gradeability: |
40% |
Vibratory Amplitude: |
0.25mm |
Vibratory Frequency: |
12HZ |
Model: |
YZC08HD |
Power Type: |
Diesel |
Engine Model: |
CF186F |
Dimension(L×W×H): |
2400×880×1100（mm） |
Operating Weight(Standard): |
800KG |
Vibratory Drum Diameter: |
400mm |
Compaction Width: |
600mm |
Wheel Base: |
470mm |
Min. Turning Radius: |
2700mm |
Gradeability: |
40% |
Vibratory Amplitude: |
0.25mm |
Vibratory Frequency: |
12HZ |

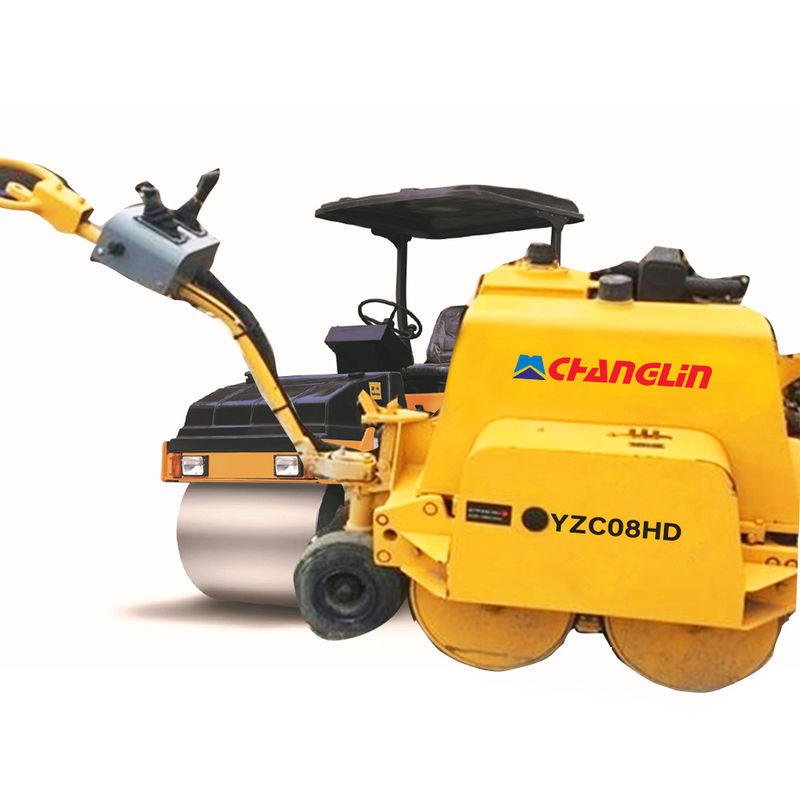

YZC08HD Vibrating Road ROLLER
YZC08HD Hydraulic walking behind vibrating road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road. surface, such as foundation of groove wider than 0.8m, building construction, back filling for pipeline and gymnasium ground.
| Engine model | WP6G175 |
| Rated power | 192KW/2000rpm |
| Dimension(L×W×H) | 6240×2320×3080(mm) |
| Operating weight(Standard) | 22000KG |
| Wheelbase | 3200mm |
| Vibratory drum diameter | 1600mm |
| Compaction width |
2130mm |
| Tire size | 20.5-25-16PR |
| Static line pressure |
516N/cm |
| Min. ground clearance | 450mm |
| Vibratory frequency |
30Hz |
| Centrifugal force | 420KN |
| Gradeability | 30% |
| Min. turning radius | 6400mm |
FEATURES
1.Vertical, direct injection, air-cooled CF186F (5.68Kw) diesel engine;
2.Hydraulic all wheel drive, strong grade ability, with both electrical & manual start-up devices;
3. Designed with guide wheel and joystick, labor saving and easy to control;
4.Adopting America DANFOSS driving pump & Eaton driving motor;
5. Nice appearance and small size capable for the compaction in narrow ground;
6. Step less speed 0- 4Km/h
