CHANGLIN YZ8 Vibrating Road Roller Equipment Compaction Operation

Product Details

Place of Origin: China

Brand Name: CHANGLIN

Certification: Provided

Model Number: YZ8

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 10000-30000

Packaging Details: Nude

Delivery Time: 15 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 30 set/momth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            YZ8 Vibrating Road Roller, Vibrating Road Roller Equipment, Vibro Road Roller Equipment


Model:	YZ8	Operation Weight(kg):	8000
Vibratory Drum Diameter(mm):	1200	Static Line Pressure(N/cm):	245
Min.ground Clearance(mm):	300	Wheelbase(mm):	2650
Min.turning Radius(mm):	6000	Gradeability:	25%
Vibratory Amplitude(mm):	0.5	Vibratory Frequency(Hz):	48
Centrifugal Force(kN):	85	Forward（km/h):	2.2/4.2/7.5/12.5/15.5
Reverse(km/h):	2.5	Tire Model:	12.00-20-16PR
Engine Model:	A498BG	Rated Power:	42KW/2200RPM
Dimension（mm）:	513018302570

Model:	YZ8
Operation Weight(kg):	8000
Vibratory Drum Diameter(mm):	1200
Static Line Pressure(N/cm):	245
Min.ground Clearance(mm):	300
Wheelbase(mm):	2650
Min.turning Radius(mm):	6000
Gradeability:	25%
Vibratory Amplitude(mm):	0.5
Vibratory Frequency(Hz):	48
Centrifugal Force(kN):	85
Forward（km/h):	2.2/4.2/7.5/12.5/15.5
Reverse(km/h):	2.5
Tire Model:	12.00-20-16PR
Engine Model:	A498BG
Rated Power:	42KW/2200RPM
Dimension（mm）:	513018302570

Description

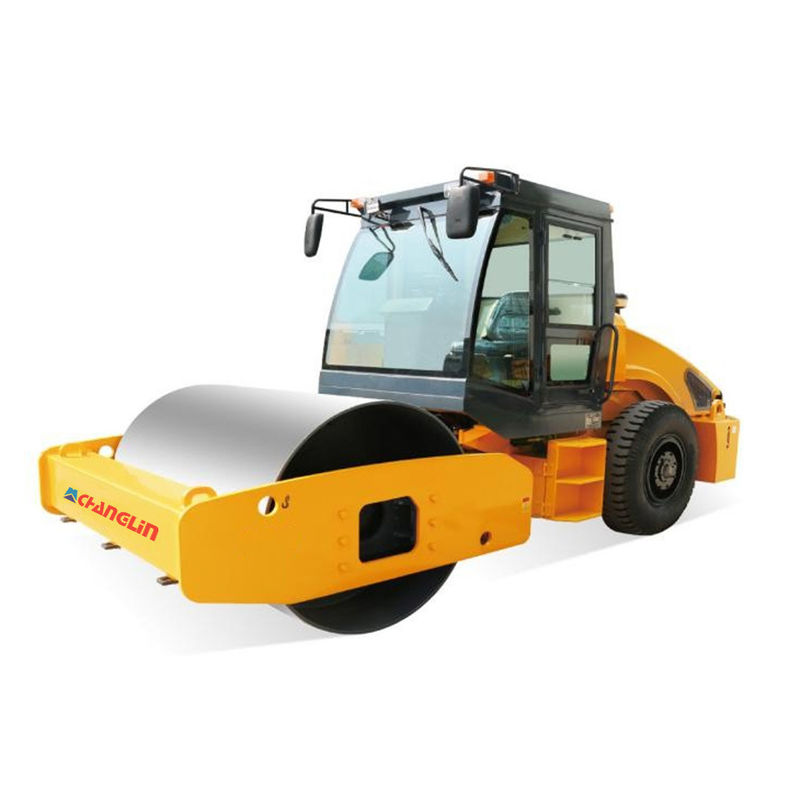

CHANGLIN YZ8 Vibrating Road Roller Equipment Compaction Operation

CHANGLIN ROAD LOADER YZ8

CHANGLIN YZ8 Vibrating Road Roller Equipment Compaction Operation 0

CHANGLIN YZ8 Vibrating Road Roller Equipment Compaction Operation 1

CHANGLIN YZ8 Vibrating Road Roller Equipment Compaction Operation 2

CHANGLIN YZ8 Vibrating Road Roller Equipment Compaction Operation 3

FEATURES

1. The road roller comes with Xinchai 4-cylinder supercharged engine, which provides large power output and high work efficiency, and helps save energy and protect the environment; The engine meets China stage II emission standard;
5.Mechanical drive with 5 forward speeds and 1 reverse speed;
2. Hydraulic vibration, electric control and large centrifugal force achieve reliable compaction performance;
6.Hydraulic steering with articulated frame provides flexible steering and adjustable amplitude;
3.Special gearbox is adopted for roller, providing high transmission torque and smooth shifting;
7.Gas-assisted hydraulic caliper disc brake for driving, mechanical drum brake for parking, ensuring high safety and reliability;
4.The rear hood can be raised at a large angle to make maintenance on the road roller easier;
8.Hydraulic components are from world's renowned brands for high stability and durability;
